Microfiltration for Electroplating

table_01   table_03


 Micro Filters / PP Filters ( Polypropylene Filters ) For Electroplating

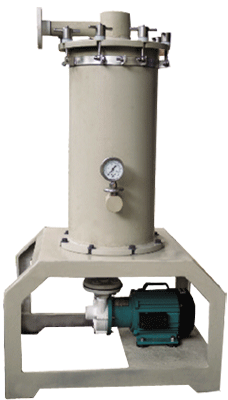

Microfiltration Filter Units
Precision Hersteller is a group company of Marshal Laboratories.

• Electroplating
• Phosphating
• Water treatment / Fine Chemicals

Wide range of Microfiltration Filter Units designed for various capacities are capable of filtering fine impurities by using special grade filter papers along with PP Cloth or cartridges of various pore size.

Precision Hersteller introduces an innovative micro filtration for electroplating. The filter units are designed to purify the operating baths for suspended micro impurities less than micron. The innovative design of filtration offers easy change / or cleaning of discs. The increased filtration area absorbs considerable quantity of activated Carbon.



Cartridge Type Filter
PP ( Polypropylene ) Cartridge Filters
Precision Hersteller filter unit are designed for wide range of electroplating baths from acidic to alkaline. The rubber parts are EPDM / VITON type and suitable for wide pH range. The filter units can operate up to 80 deg C solution temperature.
Cartridge Type Filter



Precision Hersteller offers it filter units with Cartridge stacking for achieving coarse filtration up to 10 microns. This is more suited for Phosphating baths wherein phosphate sludge is required to be removed.
The unique feature of filter units is the easy shifting from cartridge type to PP plates type or vice a versa, using the same filter chamber assembly.
Oil Separators
Precision Hersteller introduces a filter unit which is designed to filter off oil ( water insoluble phase ) especially for alkaline cleaner baths by a special material to adsorb oil on its fine surface leaving the operating bath oil free. The adsorbed oil can be squeezed out or centrifuged to reuse the adsorbing material. This facilitates to extend the life of operating baths and reduces the load on effluent treatments.

Mechanism Of Filteration
The unfiltered solution enters the PP Plates / Cartridges which faces the barrier. Only filtered solution is collected at the center which then pushed out from outlet.

Pleated / woven cartridges made up of poly propylene fine material Increased filtration area offers excellent efficiency. Fine pore filter papers thickness 1 to 1.5 mm offers ultra fine filter media & can absorb carbon particles for additional treatment. Special SS spring hose which does not crimp or enlarge while bending and offers excellent flexibility is provided with filter units

mechanism-of-filteration

Salient features of Filter Units :
Filter Chambers are so designed to us Filter paper Type or Cartridge type in same filter unit. Only the stack changing is require.

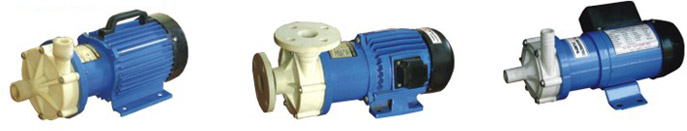

Magnetic Pumps
Magnetic Pumps

Precision Provides magnetic pumps of wide range. filter units can be offered with these magnetic pumps. These pumps provide seal less machanism and dose not requie frequent maintenance.

Model No
Pump
No of Disc
No of Cartridges
Filter Area Sq. Ft
Inlet
Outlet
Out Put
Lit/Hr
Input
Voltage
PP 150
1.5 Hp
65
20" / 6
20
Flange
Flange
16000
440V
PP 110
1.0 HP
48
20"/ 6
15
Flange
Flange
10200
440V
PP510
0.50 HP
27
10" / 6
8.50
1" Nozzle
1” Nozzle
5000
440V
PP310
0.250HP
15
10" / 6
4.75
3/4"Nozzel
¾”Nozzel
3000
440/230

Single Cartridge Filters
PP210
0.16 HP
20" Single Cartridge
3/4" Nozzel
3/4" Nozzel
900
220
