DIP–SPIN Machines
Various types of DIP–SPIN machines based on required production capacity are available. All DIP–SPIN machines are fully programmed using PLC and possess an interactive HMI display, making the operation user friendly.
How our DIP-SPIN machines are engineered
Basket design, pneumatic braking, forklift loading and more — straight from the 60 kg machine’s engineering dossier.
Engineering Dossier
Inside the DIP-SPIN Machine

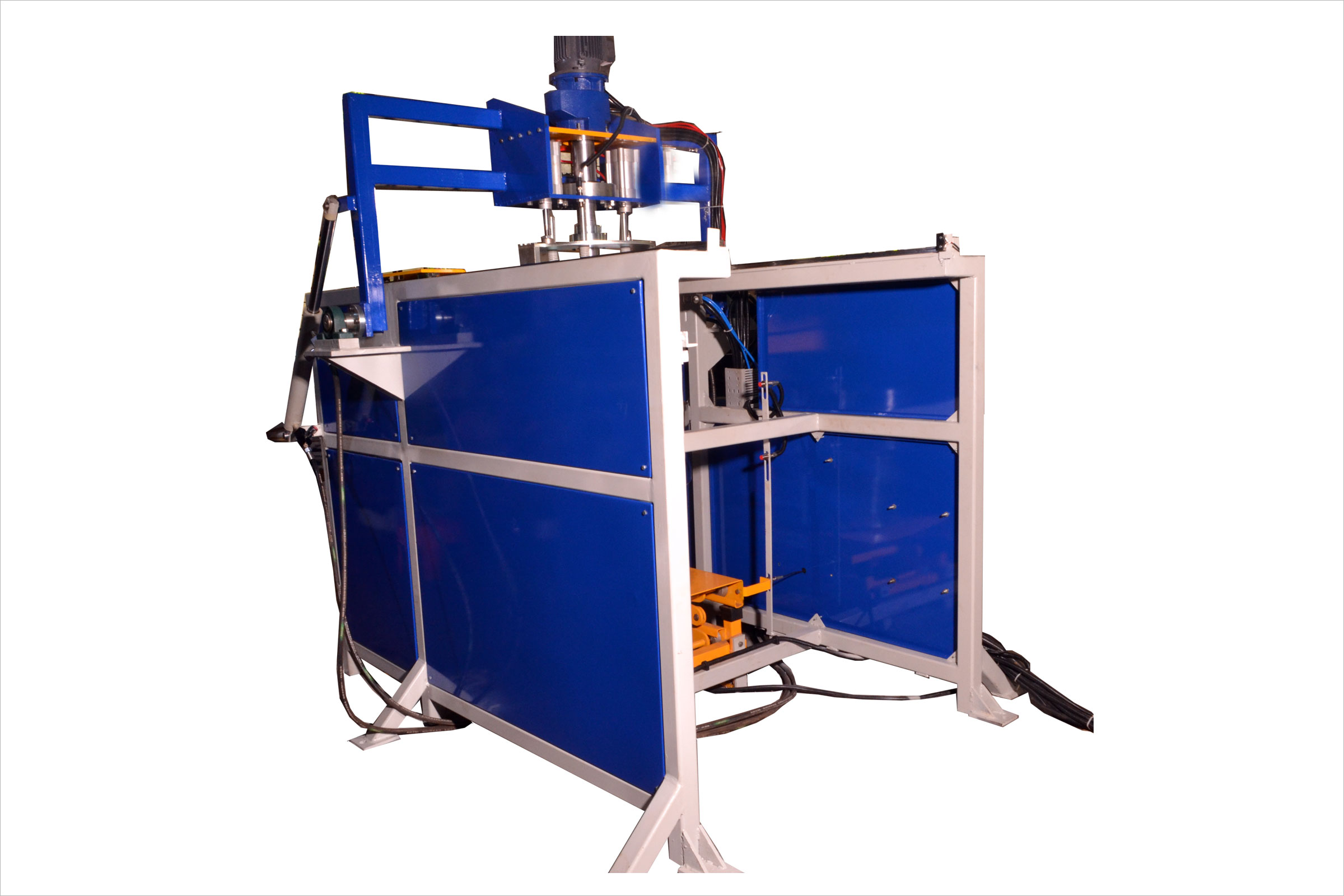

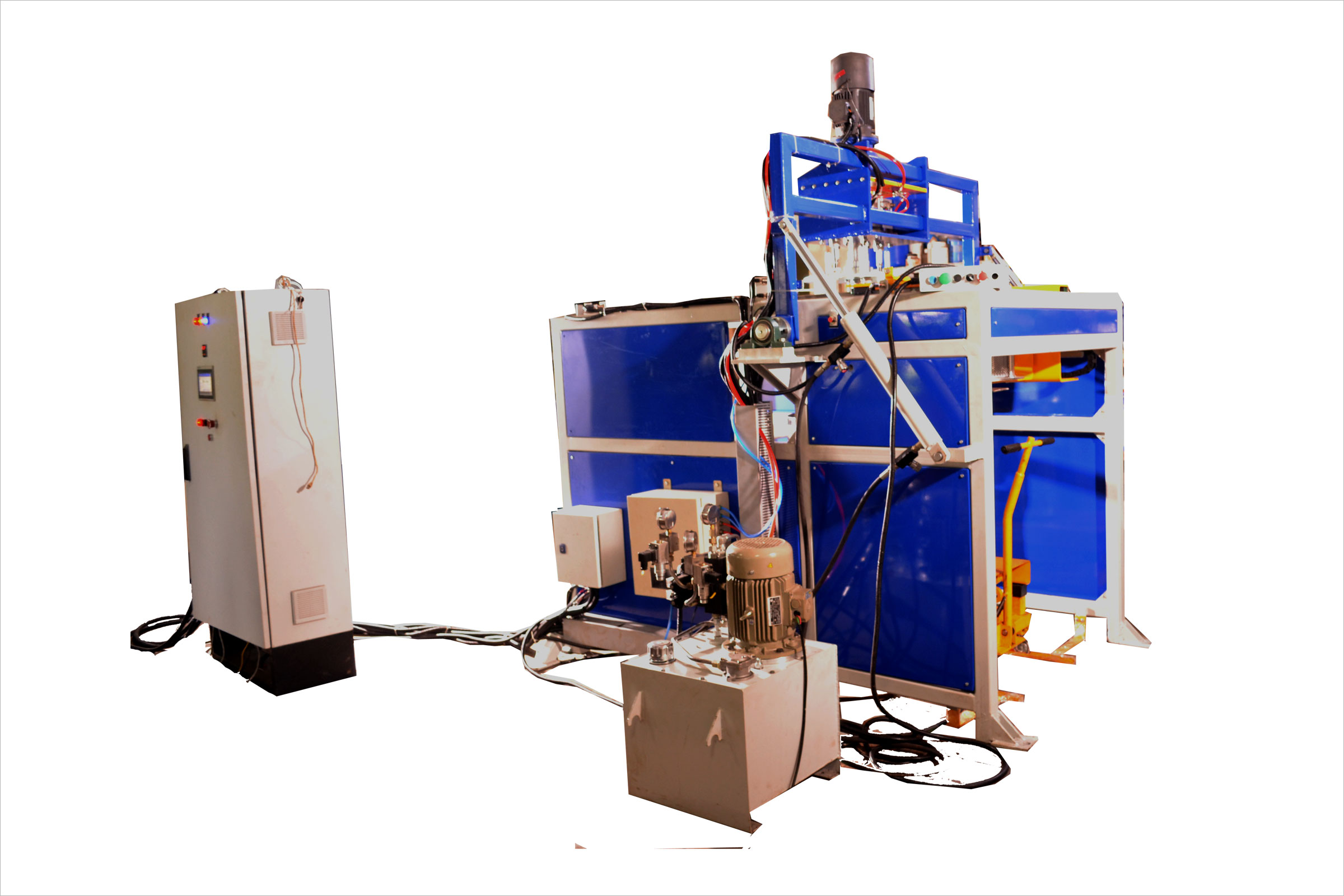

60 kg DIP-SPIN Machine
A PLC-controlled dip-spin coating machine engineered in-house — from the forklift loader and welded SS basket to pneumatic braking and stepper-driven tilting. Here is the engineering behind it.
Overall Dimensions
| Overall width | 2835 mm |
|---|---|
| Overall depth | 2460 mm |
| Overall height | 2735 mm |
| Loading height | 1276 mm |
Design Features

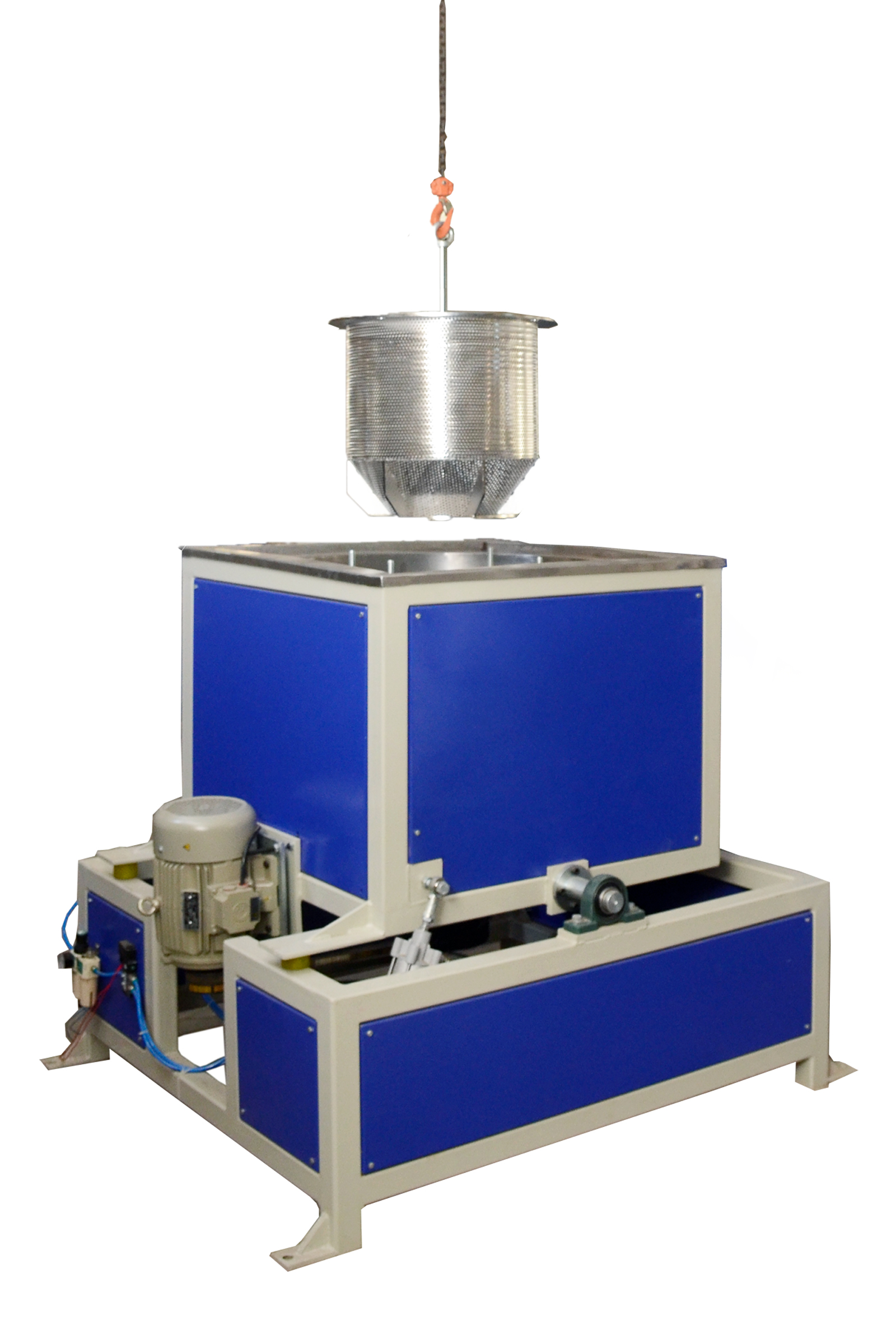

Basket Design
- Welded 10×10 mm bar construction
- 5×5 SS mesh, 2 mm thick, welded inside the frame
- Tapered bottom for even material distribution
Low-Profile Basket Mounting
- Basket mounting taken below the main base frame
- Reduces the overall height of the machine
Basket Unloading Stopper
- Mechanical stopper for the home position
- Second stopper for the tilting position
Pneumatic Brake
- Instant braking of the spinning basket
- Stops the basket at the home position
- Guides the dowel pin at the base of the basket
Forklift Loader
- Rail-and-slider linear motion guide
- Smooth, repeatable material loading
U-Frame Adjustment
- Mechanical nut-and-bolt home-position adjustment
- Holds the U-frame at exactly 90 degrees
Basket Movement
- Pneumatic cylinder drive
- Moves the basket from the loading position to the paint-tank centre
Basket Tilting
- Stepper motor with gearbox arrangement
- Controlled tilt for unloading
