 Semi and Fully Automatic DIP –SPIN Coating Plant




click on image to view larger

Zinc Flake Coating Machinary ( Dip Spin Machine )
Zinc Flake Coating Machinary ( Dip Spin Machine )
Dip Spin Machin for Zinc Plate Coating
Dip Spin Machin for Zinc Plate Coating

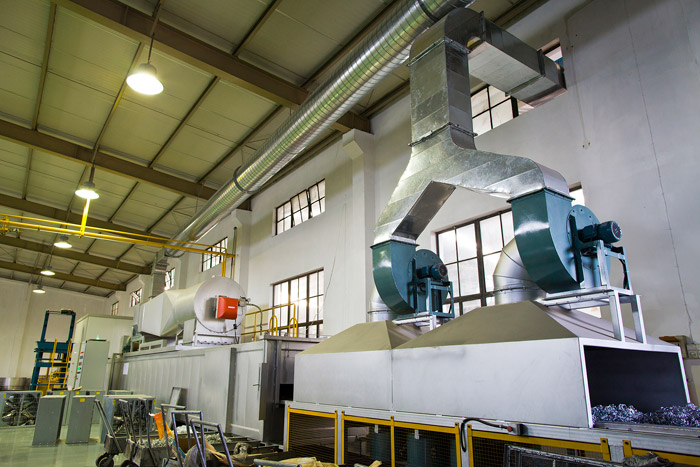

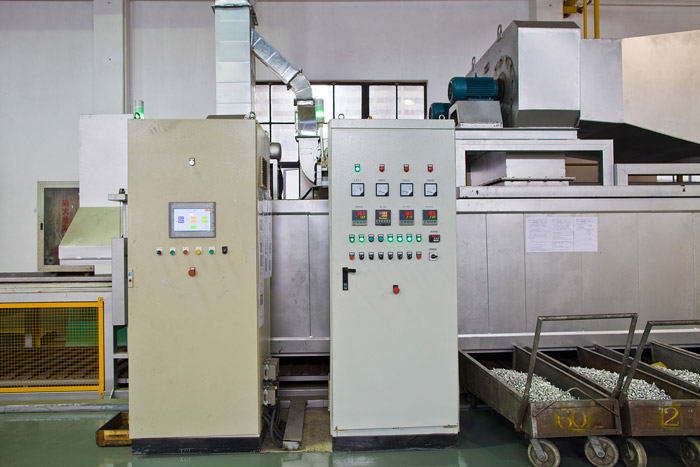

Zinc Flake Coating Machinary ( Conv. Oven )
Zinc Flake Coating Machinary ( Conv. Oven )
Zinc Flake Coating Machinary
Zinc Flake Coating Machinary



click on image to view larger

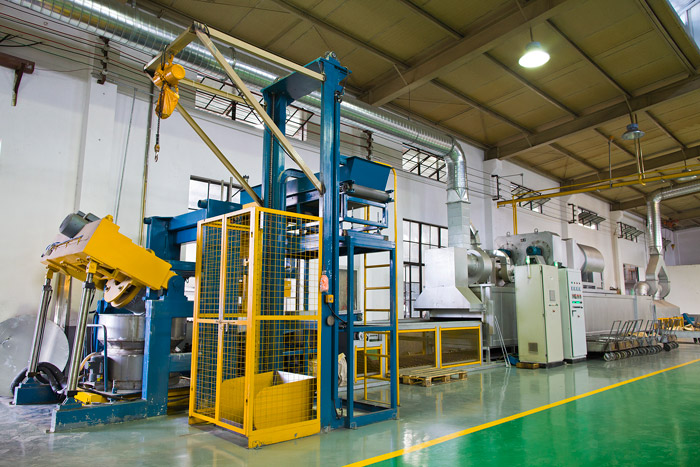

Marshal Laboratories Provide the total solution for Zinc Al flake coating as a turnkey project.
Simple manual DIP Spin machines are also provided for low volume productions.

Manual DIP SPIN Machine  DSP 450

A manual type of DIP and Spin machine can be provided for economic installations. Typical load capacity if the basket is 45 to 55 Kgs.
The machine is capable of producing 30 Tons of production every month.

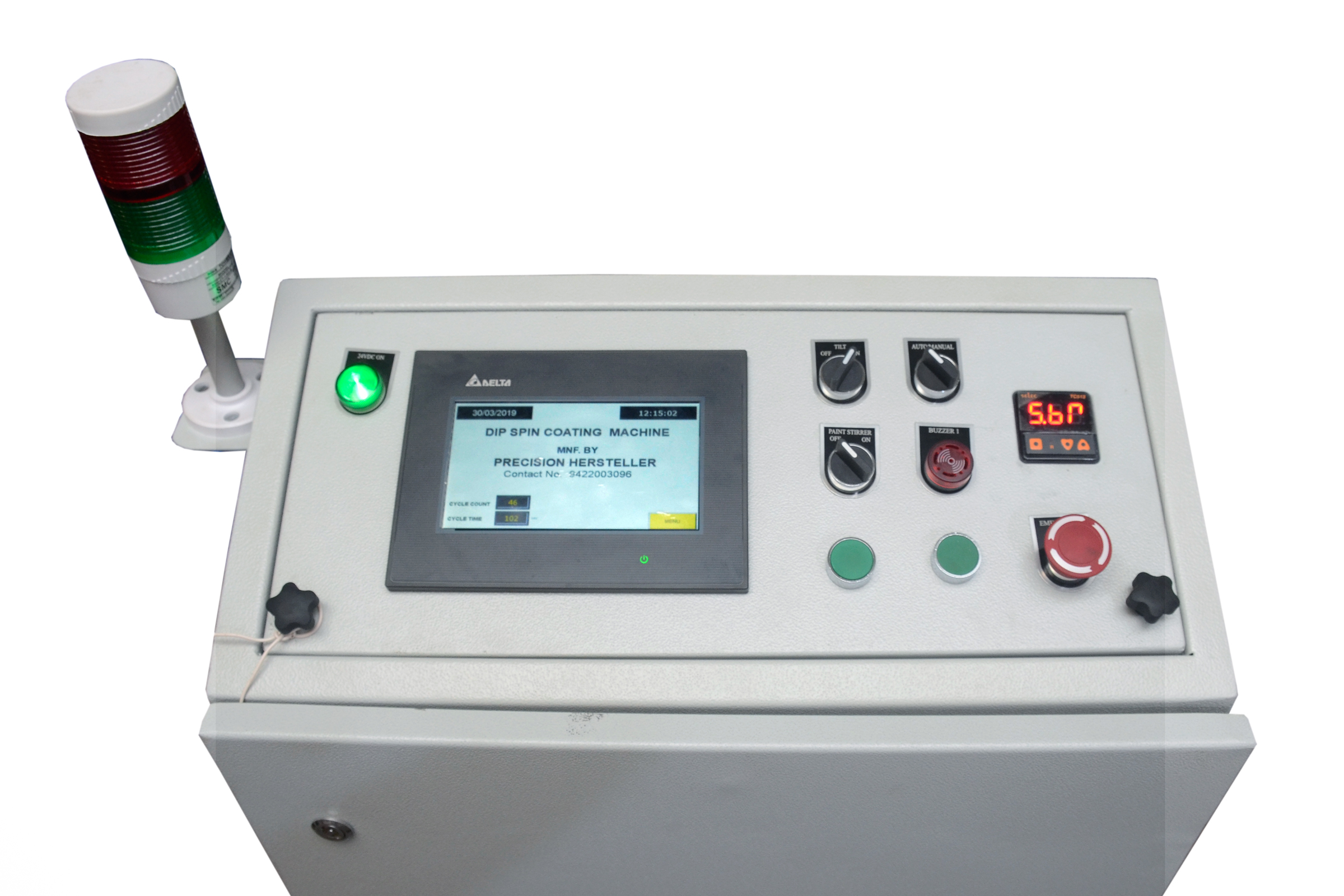

The machine is supplied with a programmable control panel allowing following parameters to set :

  1. SPEED of rotation ( RPM )
  2. No of Cycles of rotation
  3. Time of rotation

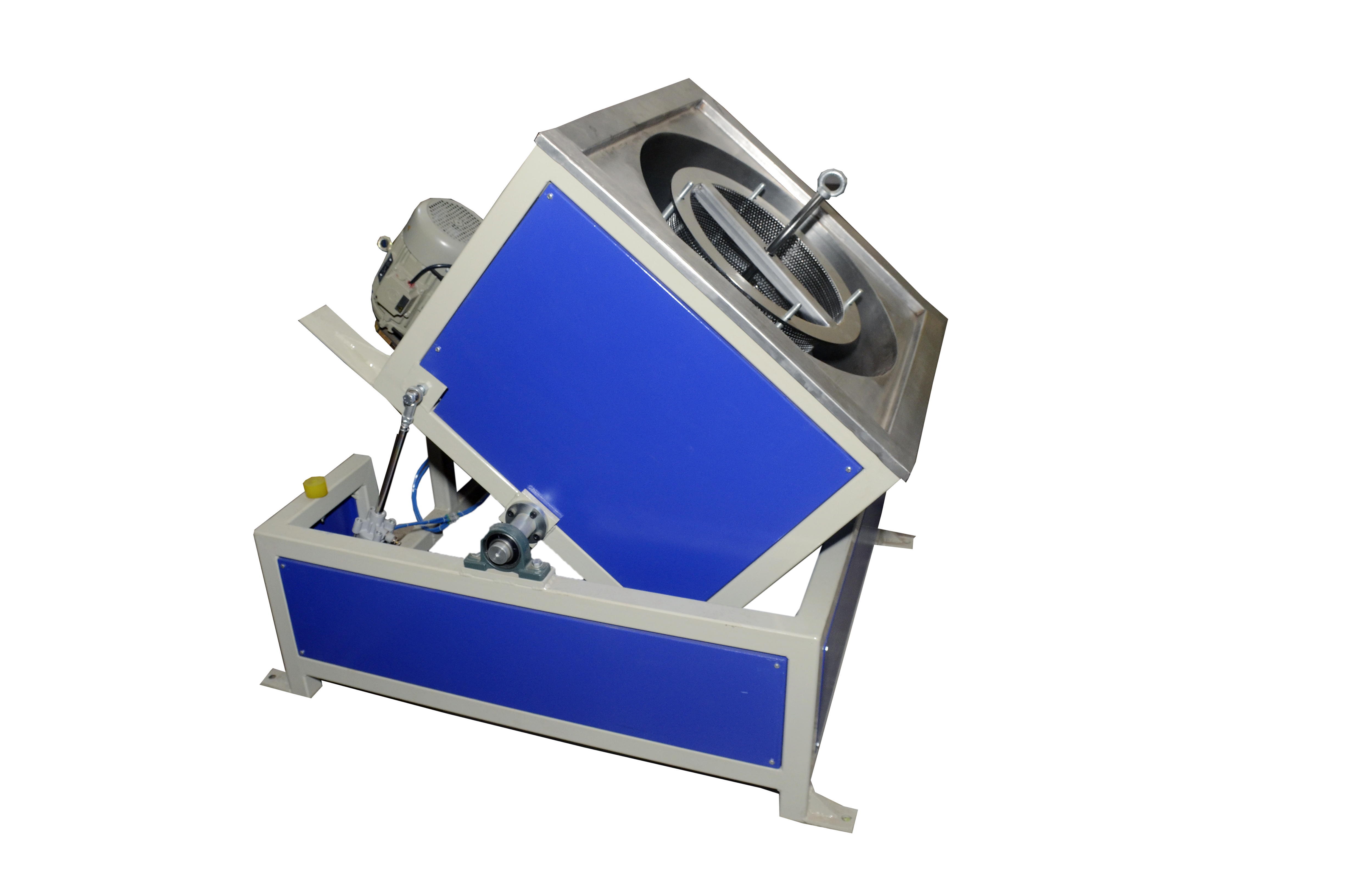

  4. The Pneumatic Cylinder tilt operation .

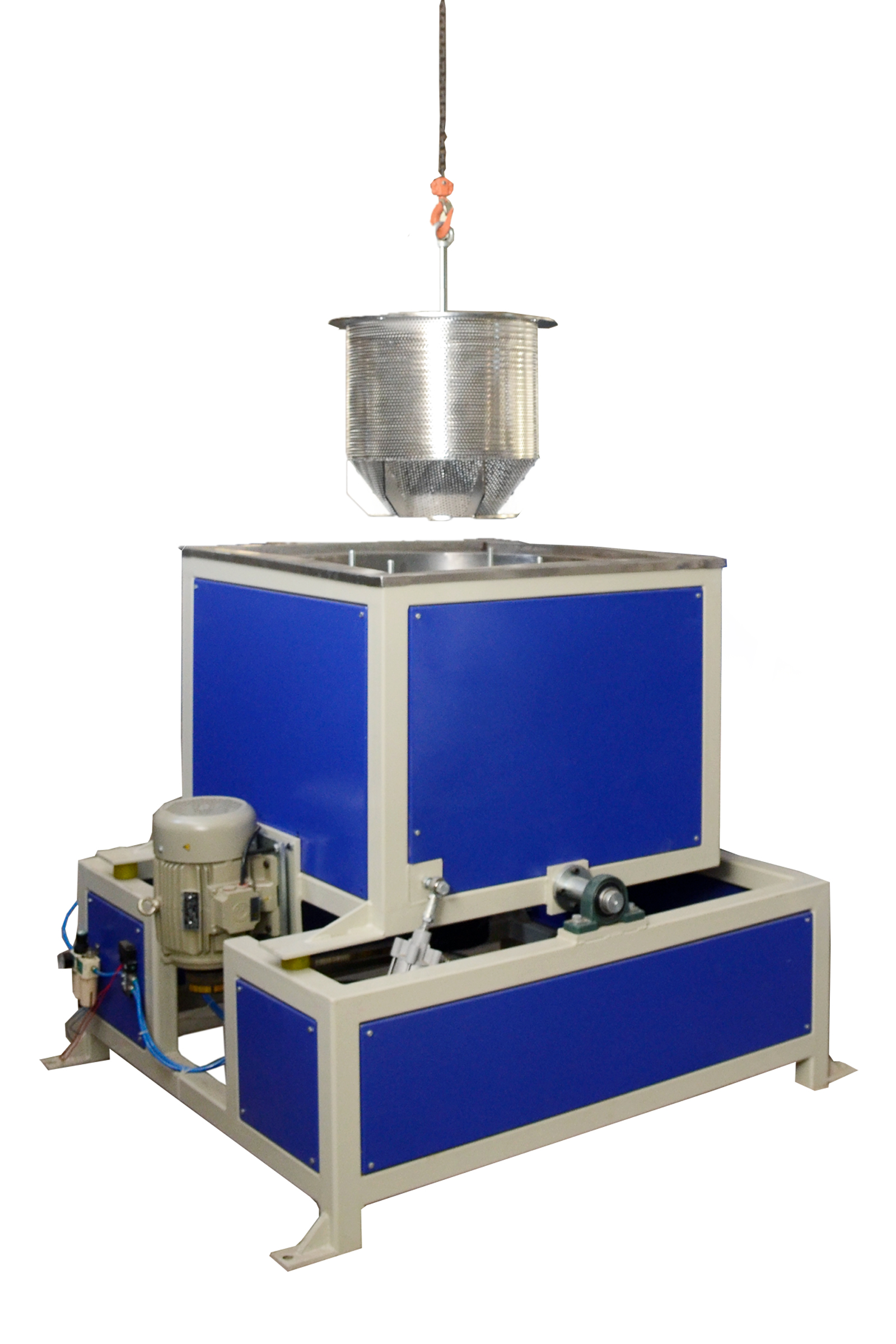

The SS baskets are ideally designed to unload from bottom, which handles the coated components with extra care.
The salient features of the Manual DIP SPIN machine DSP 450 is;

  1. Low cost installation

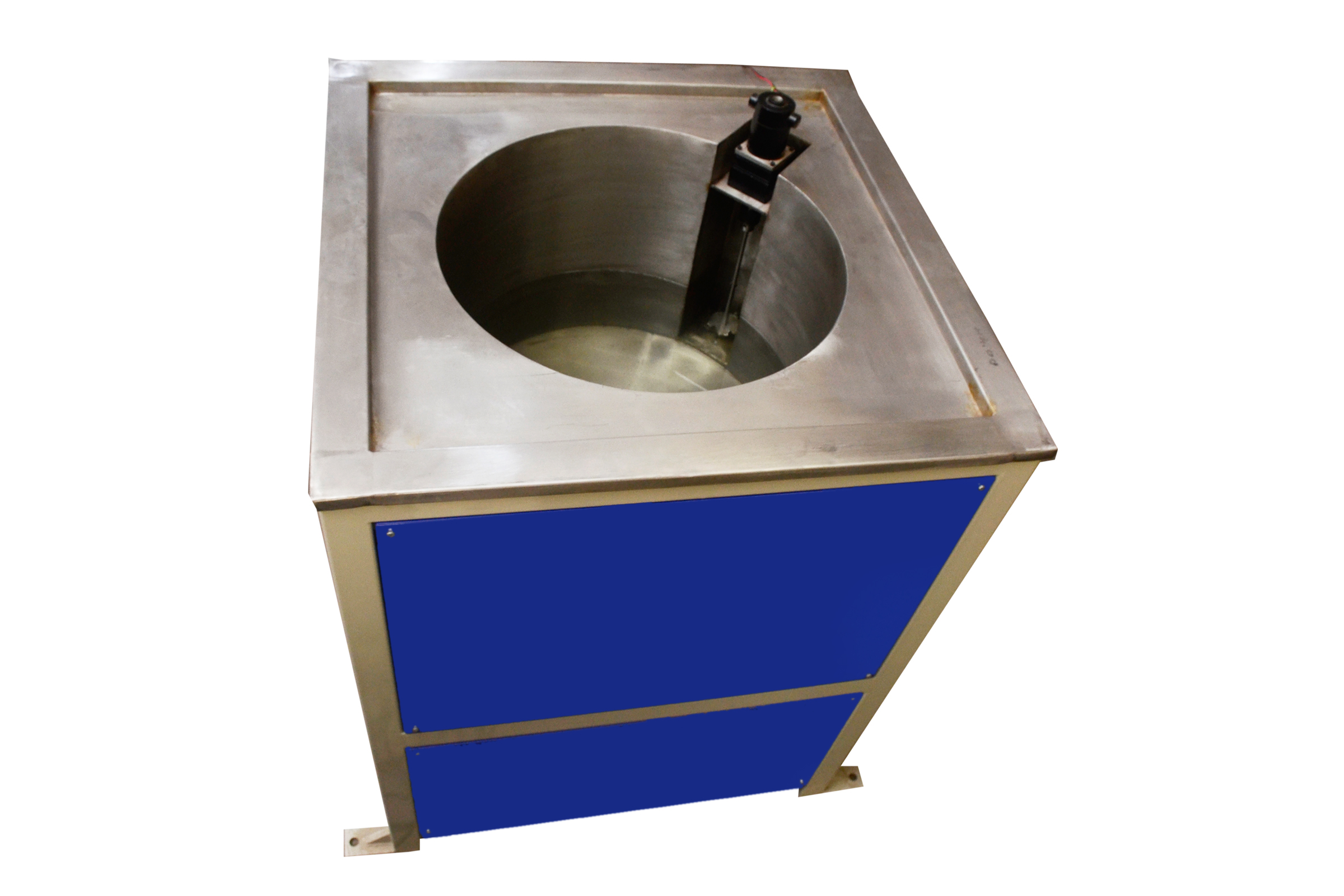

  2. Requires only 40 Lits of Paint to start the production in DIP Module
  3. Low paint wastage as, paint collection facility available in Spinning Chamber
  4. HMI Control Panel makes it more convenient to operate.
  5. Can be used in conjugation with Conveyor  as well as Box oven

table_07   table_09

click on image to view larger

1
2

3
4

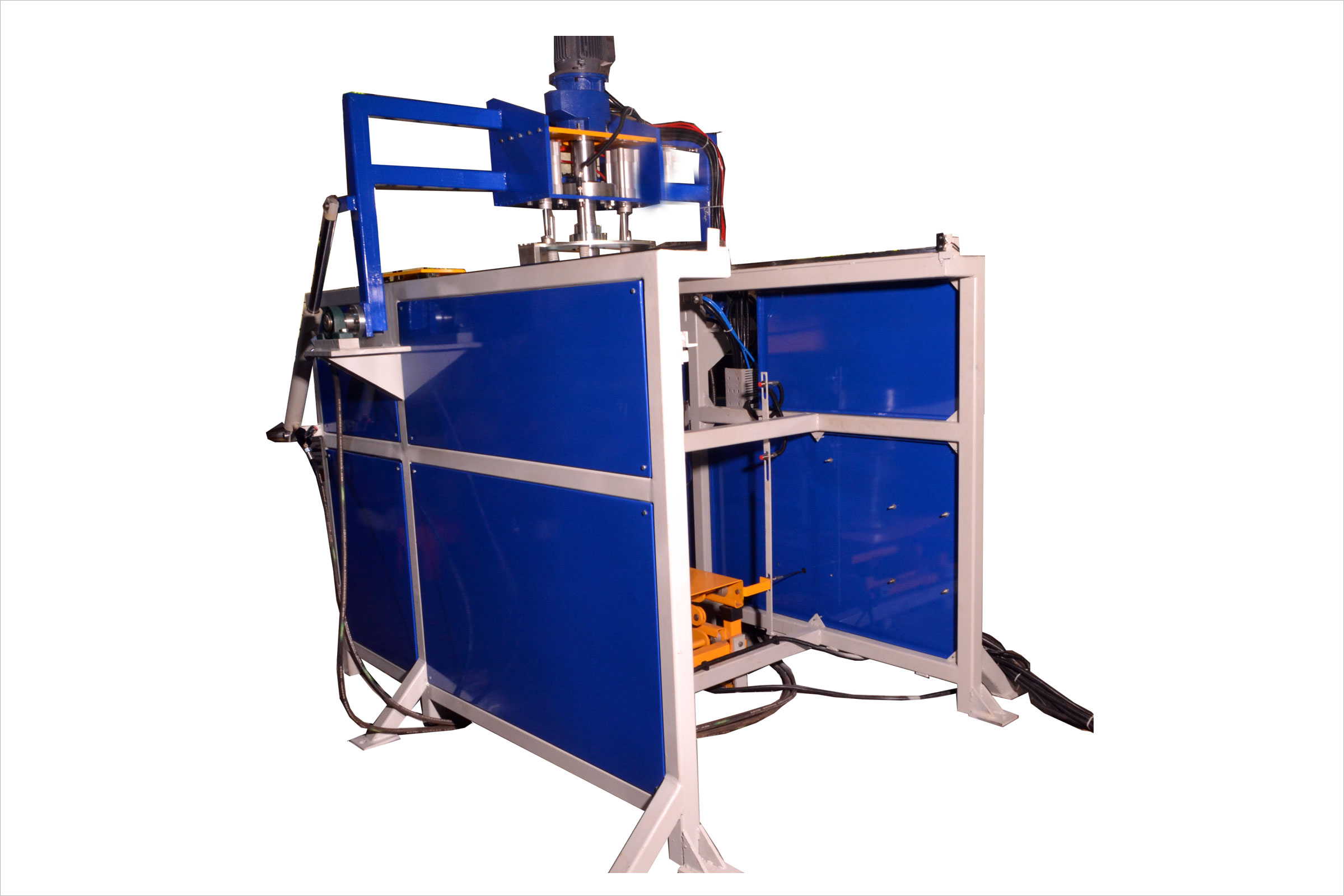

dip-spin-machine1

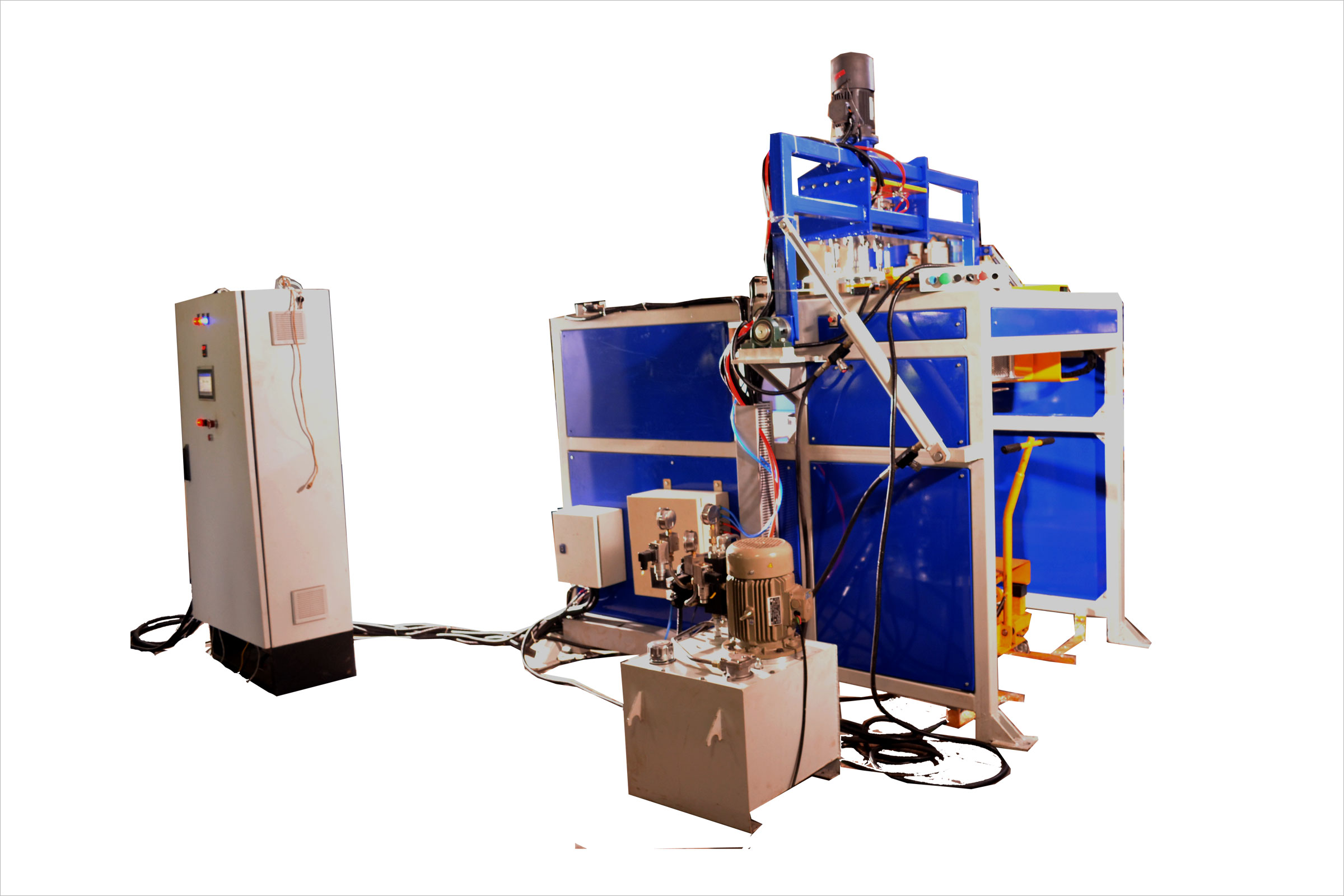

dip-spin-machine2

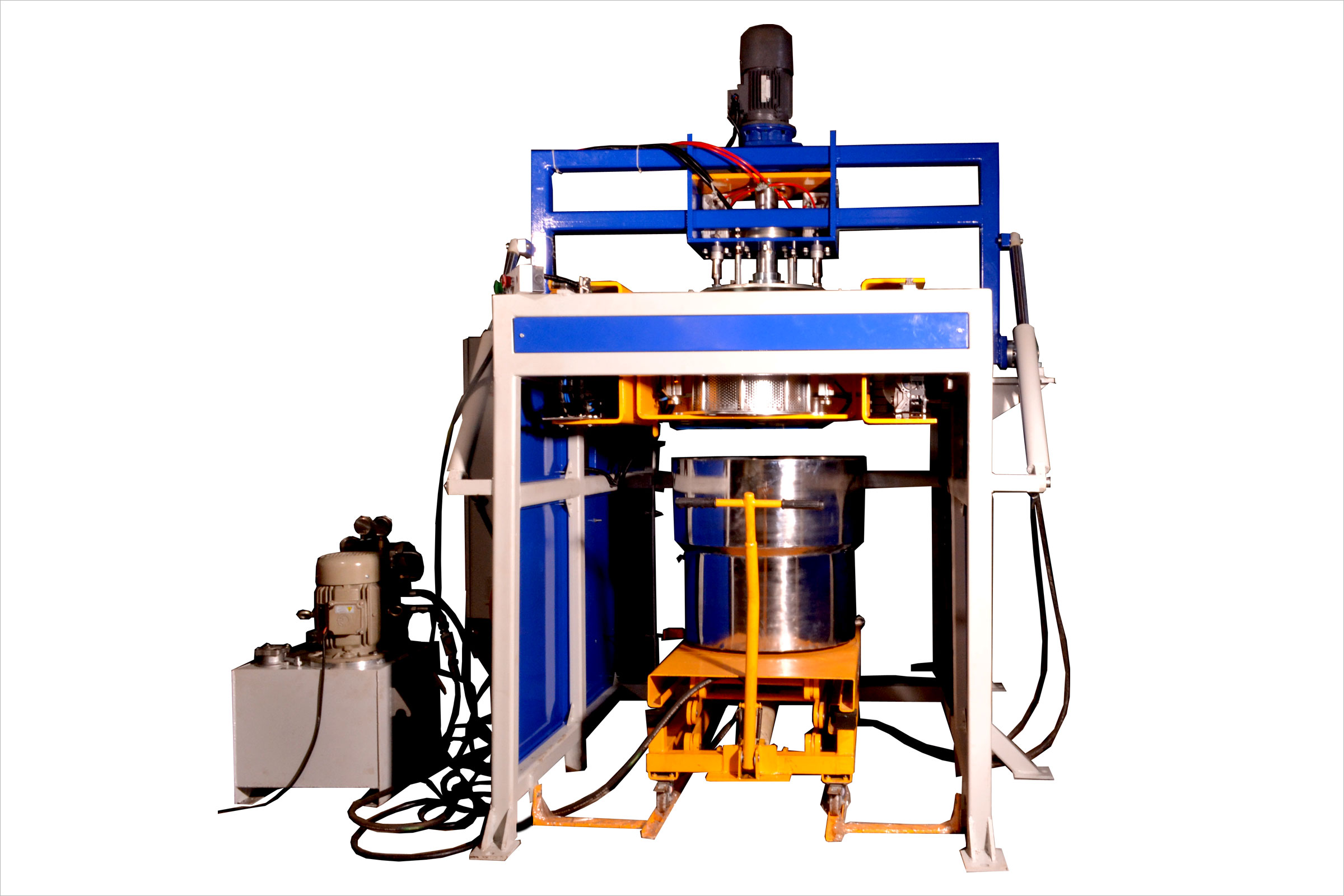

ip-spin-machine3

click on image to view larger



Please see the video


Semi Automatic Dip Spin Coating Machine
